How to Use and Create Solar MC4 Connections

Have you noticed that many solar panels use distinct black connectors that snap together with a satisfying click? These are solar MC4 connectors, and they're far more than just a way to connect solar panels to your power station. They're the industry standard that ensures reliable, weather-resistant power transfer in solar systems worldwide.

If you're just getting started with solar power, understanding how to use and create MC4 connections might seem like a major challenge. Between male and female ends, crimping requirements, and various tools and adapters, there's quite a bit to learn.

You're in the right place. I've helped thousands of customers set up their solar systems, and I can tell you that mastering MC4 connections is easy, even if you're completely new to solar. We'll cover:

• What they are and why they've become the industry standard
• How to identify and work with male and female connectors
• Essential tools and installation techniques
• Maintenance tips and troubleshooting advice
• Critical safety considerations for solar connections

This article is part of a bigger series about how to connect solar panels.

What Are MC4 Connectors?

The "MC4" in MC4 connector stands for "Multi-Contact, 4mm" – a reference to both the original manufacturer (Multi-Contact) and the diameter of the contact pins.

These connectors were specifically engineered for solar power systems, and their design reflects this specialized purpose. Each MC4 connector is built with several key features:

1. Weather Resistance: MC4 connectors carry an IP67 rating, which means they're dustproof and can handle temporary submersion in water. This makes them perfect for outdoor solar installations where they'll face rain, snow, and harsh UV exposure.
2. Touch Protection: The design includes recessed contacts that prevent accidental touching of live electrical parts. Since solar panels are live whenever the sun is shining, this is a crucial safety element.
3. Secure Locking: That satisfying "click" you hear when connecting MC4s is a durable, mechanical locking system that prevents accidental disconnection. The connection is so secure that it's best to use a special tool to separate them.

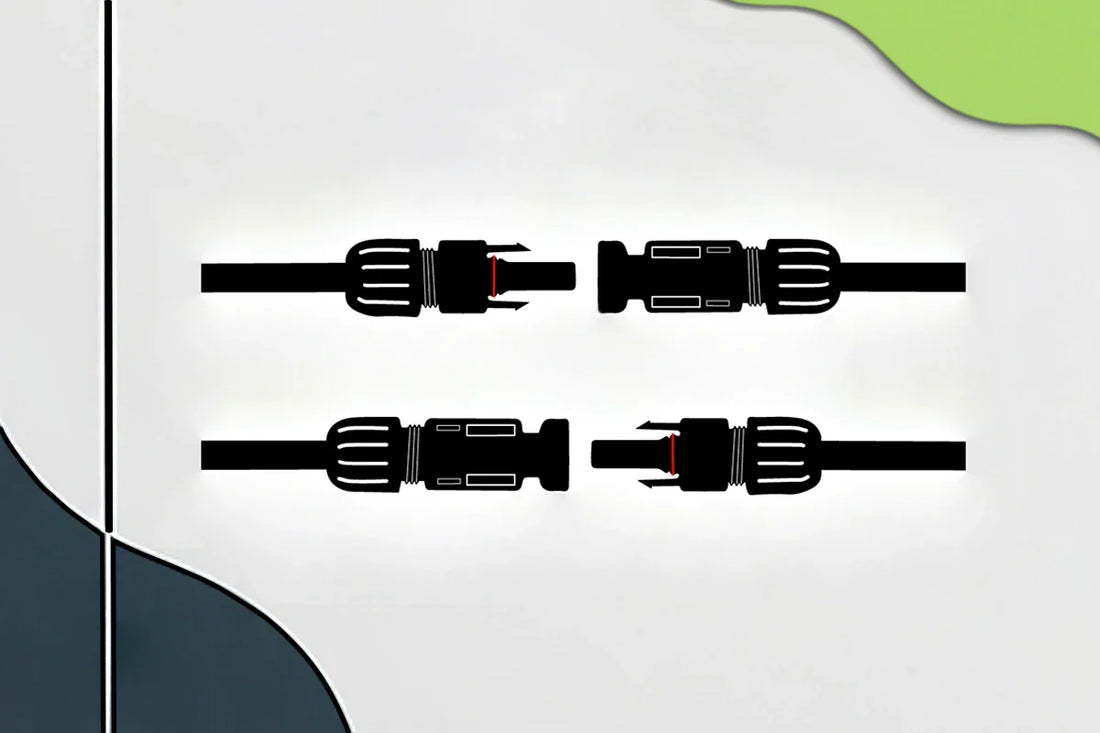

Male vs Female Connectors

When dealing with MC4 connectors, understanding the difference between male and female connectors is important.

Identifying Male and Female Ends

There are two distinct parts to the MC4 connectors: the exterior plastic housing and the interior metal pins. The male/female identification is a little backwards because of this two-part arrangement.

The plastic housing that you would think is male has an interior pin that is female. And the plastic female housing has a male interior pin.

The good news is that this doesn't matter much. Just use extra caution when following directions that specify male/female because it may not be so obvious. And even more confusing, you can easily find conflicting use of the terms as some people refer to the housing while others refer to the interior pin.

Polarity and Reverse Polarity Prevention

One key aspect of using MC4 connectors is ensuring polarity is correct. Thankfully, there is a standard to follow.

Generally, the female connector (with the male plastic housing) is connected to the solar panel's positive lead. This is the arrangement you can expect to see from most panels.

That means if you're extending cables, you'll connect the female connector (with the male plastic housing) to a male connector. This will once again leave a female connector open at the end of your MC4 extension cable.

Safety Features

The locking mechanism helps everything stay firmly connected even in high winds or harsh weather. Unlike household plugs, which can wiggle loose over time, MC4 connectors require a specialized tool for disconnection.

This intentional design keeps your solar array secure and functioning at peak efficiency, no matter the conditions.

SEE OUR PRODUCT LISTING FOR MC4 CONNECTORS.

Working with Pre-Made Cables

For those who want a plug-and-play solution, pre-made cables with MC4 connectors already installed are a fantastic option.

Pro Insight: Even when using pre-made MC4 cables, you need to get one specific tool. The MC4 disconnect tool is a necessary item to have on hand. It is the surefire way to disconnect the cables without damaging them. Thankfully, they're very affordable.

Why Choose Pre-Made Cables?

Pre-made cables save time and reduce the risk of error during installation. They’re especially useful for beginners or when working in tight spaces where custom assembly might be tricky.

If you don't like the ideal of fitting your own MC4 connectors onto a cable, there's nothing wrong with pre-made MC4 solar cables. They are a great and simple solution that can go with almost any solar panel setup.

Choosing the Right Length

When selecting a pre-made cable, measure the distance between your solar panels and power station.

• Too short, and it won't work without another extension cable.
• Too long of solar cables can cause a slight voltage drop, losing out on precious energy that could be more efficiently used.

Read more about choosing the right solar extension cable.

MC4 Custom Cables: Installation and Tools

Installing MC4 connectors might feel intimidating at first, but with the right tools and techniques, you’ll have them set up in no time. Let’s break it down step by step.

Essential Tools for the Job

Before you start, make sure you have the following tools:

1. Wire Strippers and Crimping Tool: For removing insulation from the solar wires and creating a strong and reliable connection between the wire and the contact pin.
2. MC4 Disconnector Tool: Handy for securing or disconnecting the connectors without damaging the locking mechanism.
3. MC4 Connectors: Universal connectors that come broken down into the parts for you to compile as you connect them.
4. Cables: Get the right gauge and length of cables for your solar panels, often 12 AWG or 10 AWG.

Proper Crimping and Connecting Technique

Crimping is where the magic happens. Here’s a quick overview:

1. Strip about 8mm of insulation from the wire.
2. Insert the stripped wire into the MC4 contact pin.
3. Use the crimping tool to securely fasten the wire to the pin. The result should be tight enough to withstand pulling but not so tight that it damages the wire.
4. Assemble the connectors by first threading on the end cap and rubber seal. Then insert the crimped pin into the connector's plastic housing. You’ll know it’s properly seated when you hear a distinct click.
5. Screw on the end cap securely with the watertight rubber seal in place.
6. Attach to the other MC4 cable and ensure you get the connection fully seated. Once again, you should hear the two tabs on plastic housing click into place with the MC4 connector it joins.
7. Finally, always test your connections with a multimeter to ensure proper polarity and continuity. It’s like giving your system a quick health check before turning it on.

Common Installation Mistakes

Even experts sometimes slip up. Here are a few pitfalls to avoid:

• Overstripping the Wire: This can expose too much metal and lead to short circuits. There should be no exposed wire outside of the crimped connection pin.
• Using the Wrong Tools: Regular pliers or makeshift tools can damage the connector or create insufficient crimping. Do yourself a favor and avoid costly (and possibly dangerous) mistakes. Having a loose connection can be a fire hazard.
• Skipping Polarity Checks: Double-check the positive and negative alignment before locking everything in place. A mistake can cause serious damage to your equipment.

Maintenance and Troubleshooting

Like any piece of equipment, MC4 connectors need occasional TLC to stay in top shape.

Regular Visual Inspections

Check for signs of wear, such as cracked housings, bent pins, or frayed wires. These small issues can snowball into bigger problems if ignored.

You also want to make sure that areas of the cable that are bent are still in good shape. These are common points of failure, especially if the cable is wrapped too tightly around a curve. You want to avoid tension when installing your solar cables.

Cleaning Tips

Typically, there's no need to clean your connectors. If you happen to notice substantial debris build-up, you can gently use a soft brush or compressed air to remove debris.

Avoid using pressurized water, as it can seep into the connection points. IP67 waterproofing doesn't stop strong pressurized water sprayed directly onto the housing.

Weatherproofing Considerations

Ensure the rubber seals are intact and properly seated. If you notice any damage, replace them immediately to maintain the IP67 rating. The most sensitive components are protect from the sun, but long-term UV exposure can be brutal on even the most robust components.

Safety Considerations

Solar power is empowering, but it’s also electrical energy, which means safety first.

• Work with Deactivated Systems: Always disconnect the panels from the power station before handling connectors.
• Be Cautious in Bad Weather: Wet conditions increase the risk of electrical shock.
• Use Proper Tools: Never attempt to disconnect MC4 connectors without the correct spanners.

When in doubt, consult a professional. Sometimes, the safest tool in your kit is the phone number of an experienced technician.

By now, you should feel confident about MC4 connectors. Whether you’re plugging in a single panel for a weekend camping trip or connecting an entire array for your RV, these little connectors are your gateway to safe, reliable solar energy.
