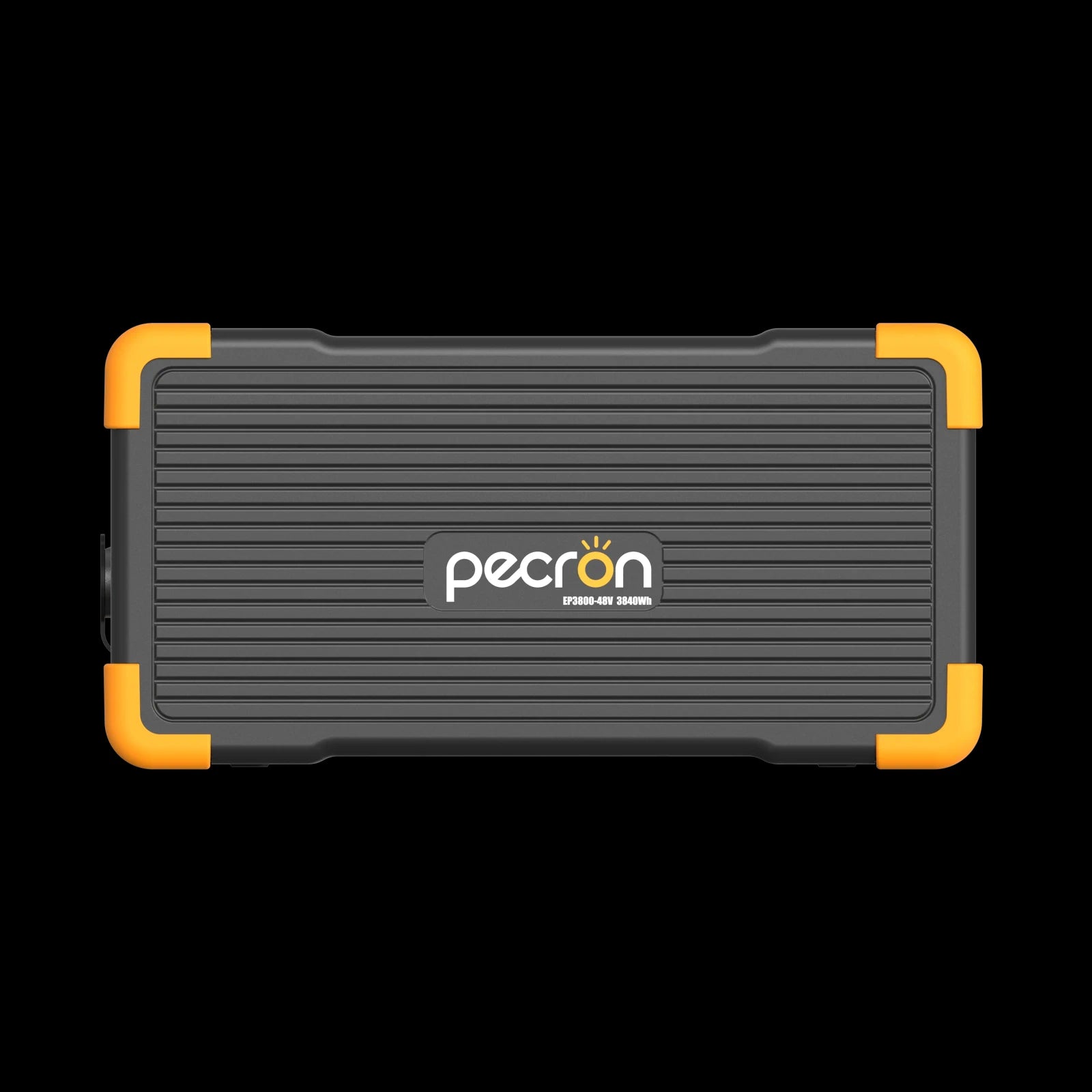

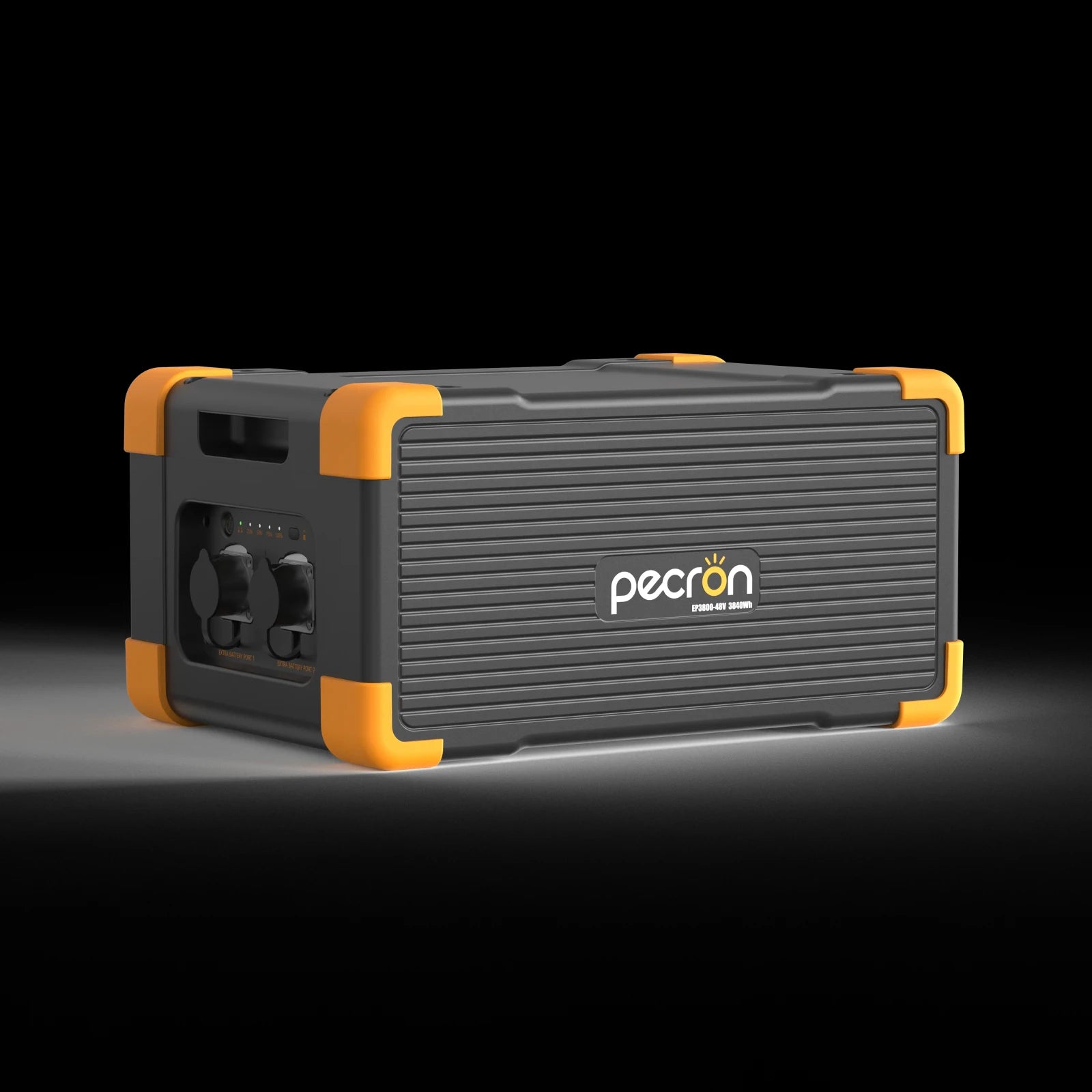

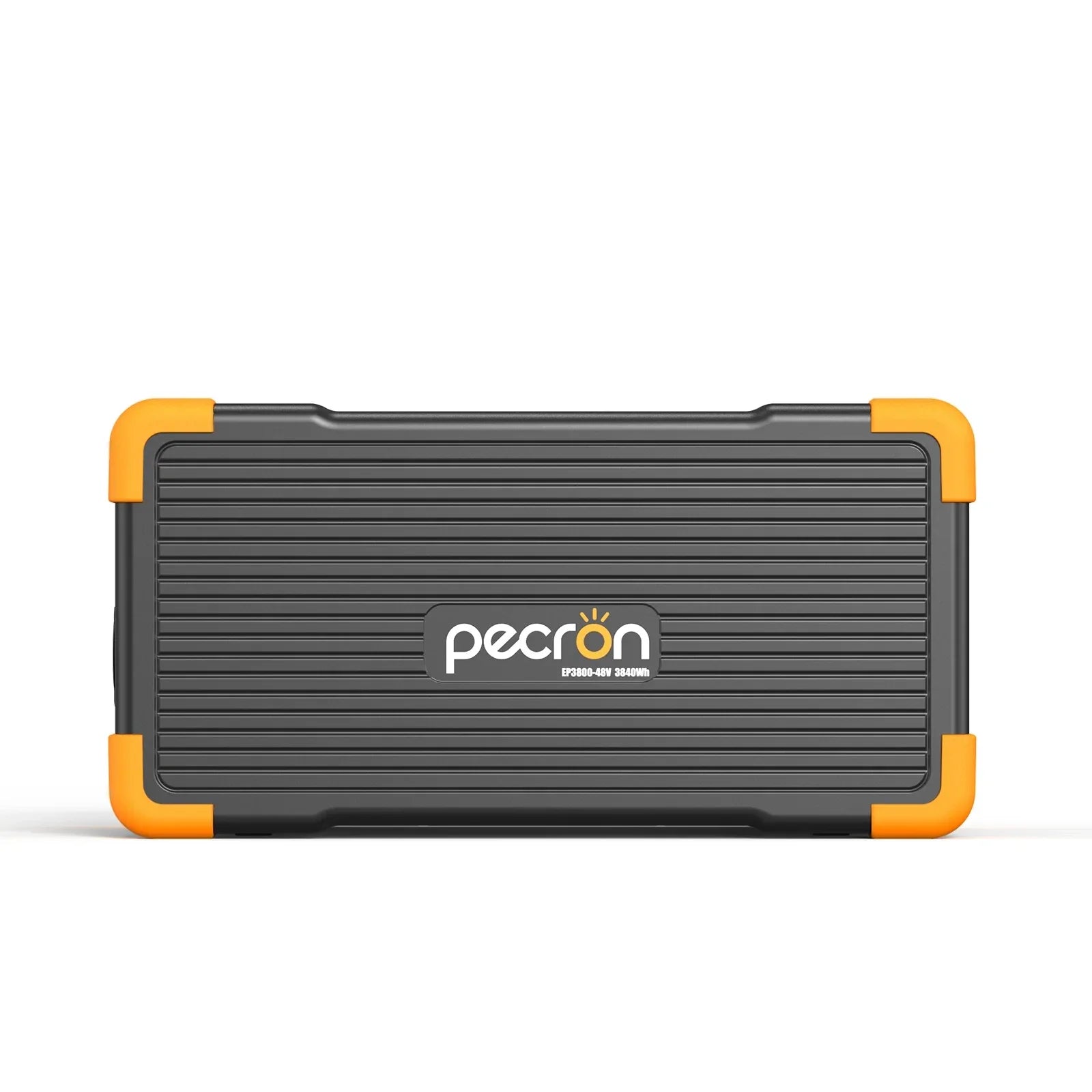

PECRON EP3800-48V Expansion Battery 3840Wh

PECRON EP3800-48V Expansion Battery 3840Wh

3840Wh LiFePO₄ Battery: High-capacity energy storage rated for 3,500+ cycles to 80% capacity.

PECRON Compatibility: Designed to expand most PECRON power stations, including E3800LFP, E3600LFP, F3000LFP, E2400LFP, E1500LFP, and E1000LFP.

Safe, Efficient, and Durable: Equipped with advanced BMS and LiFePO₄ chemistry for stable, long-lasting power.

POWER STATION IS SOLD SEPARATELY

Regular price $799.00
Regular price $1,499.00 Sale price $799.00
Sale Sold out
FREE Shipping!
View full details

The PECRON EP3800-48V Expansion Battery is a powerhouse of pure energy storage, designed to extend the runtime of your favorite PECRON power stations. It can also operate as a standalone DC power solution with charging inputs and a variety of DC outputs. Built with LiFePO₄ battery chemistry, it delivers 3840Wh of reliable energy and over 3,500 charge cycles for long-term dependability.



The Power Sphere is an authorized PECRON distributor. Your purchase includes PECRON’s official warranty and service, plus our hands-on support for setup.



PECRON EP3800-48V Expansion Battery 3840Wh total maximum systems

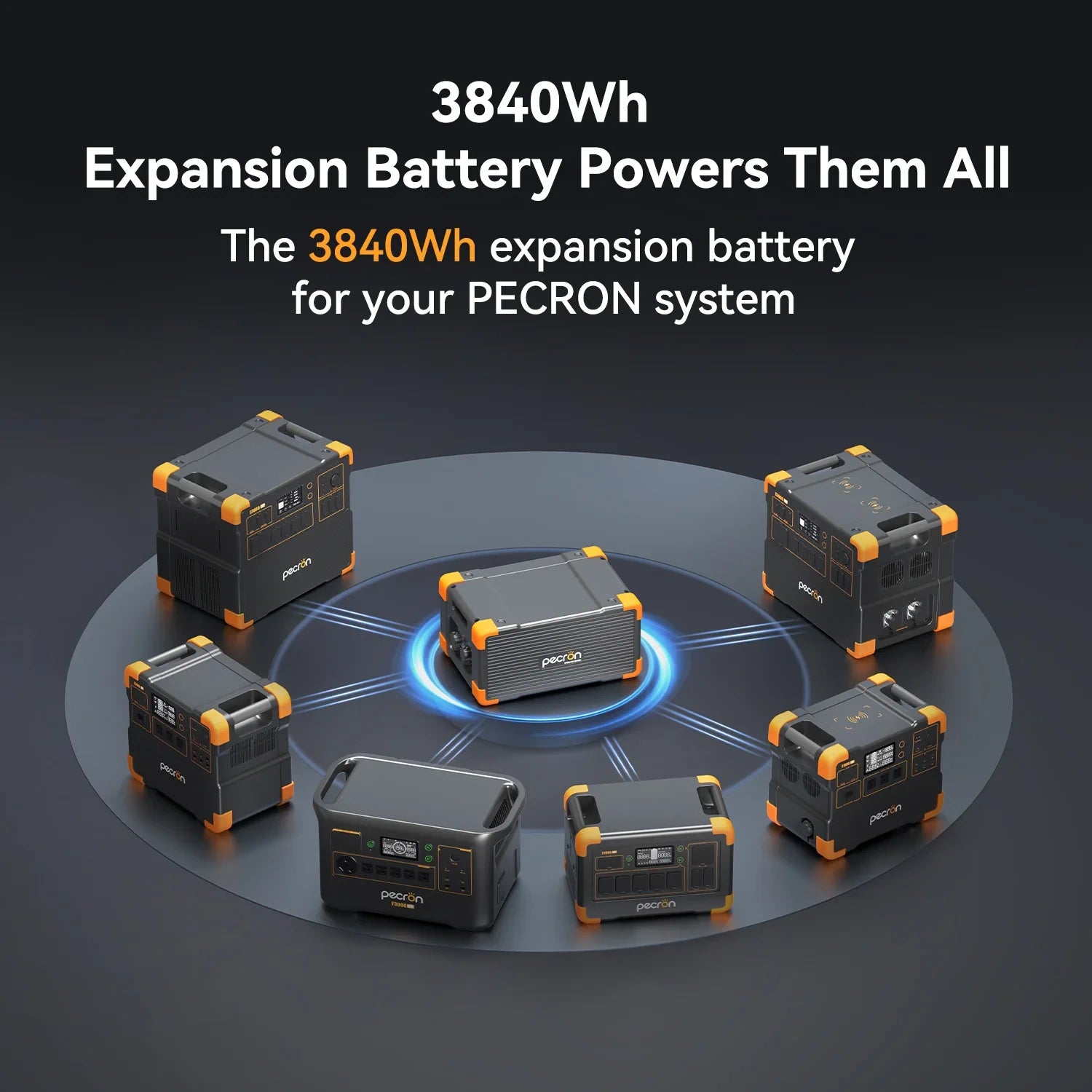

Expandable Energy for PECRON E & F Series

The EP3800-48V seamlessly integrates with several PECRON power stations, including the E1000LFP, E1500LFP, E2400LFP, F3000LFP, and E3600LFP. When paired, it automatically syncs power levels, creating an expanded energy system that can run longer.

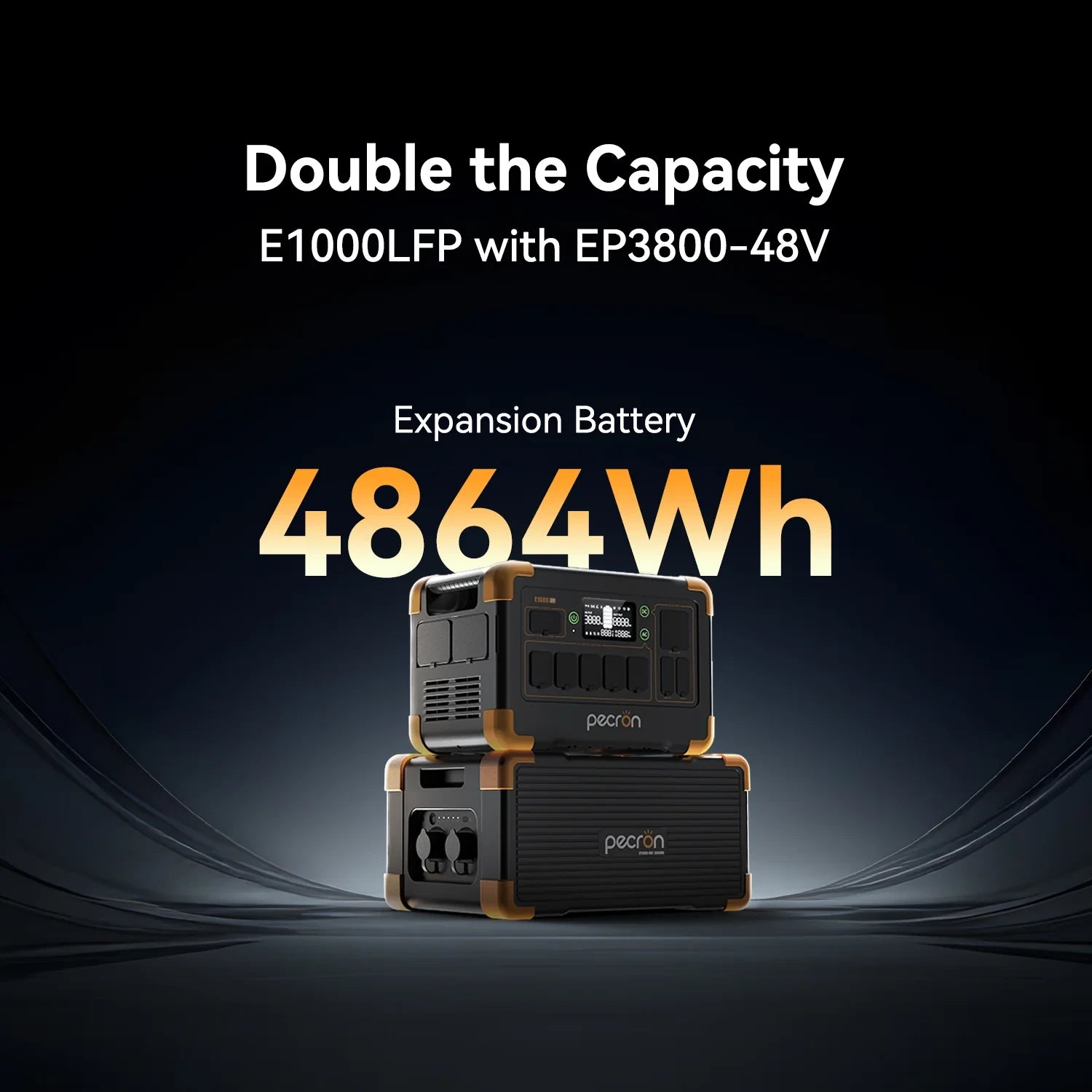

  • E1000LFP: Maximum of ONE EP3900-48V (4.86kWh total capacity).
  • E1500LFP: Maximum of TWO EP3800-48Vs (9.22kWh total capacity).
  • E2000LFP: Not compatible with the EP3800-48V (uses EB-3000-24V).
  • E2400LFP: Maximum of TWO EP3800-48Vs (9.73kWh total capacity).
  • F3000LFP: Maximum of TWO EP3800-48Vs (10.75Wh total capacity).
  • E3600LFP: Maximum of FOUR EP3800-48Vs (15360Wh total capacity).

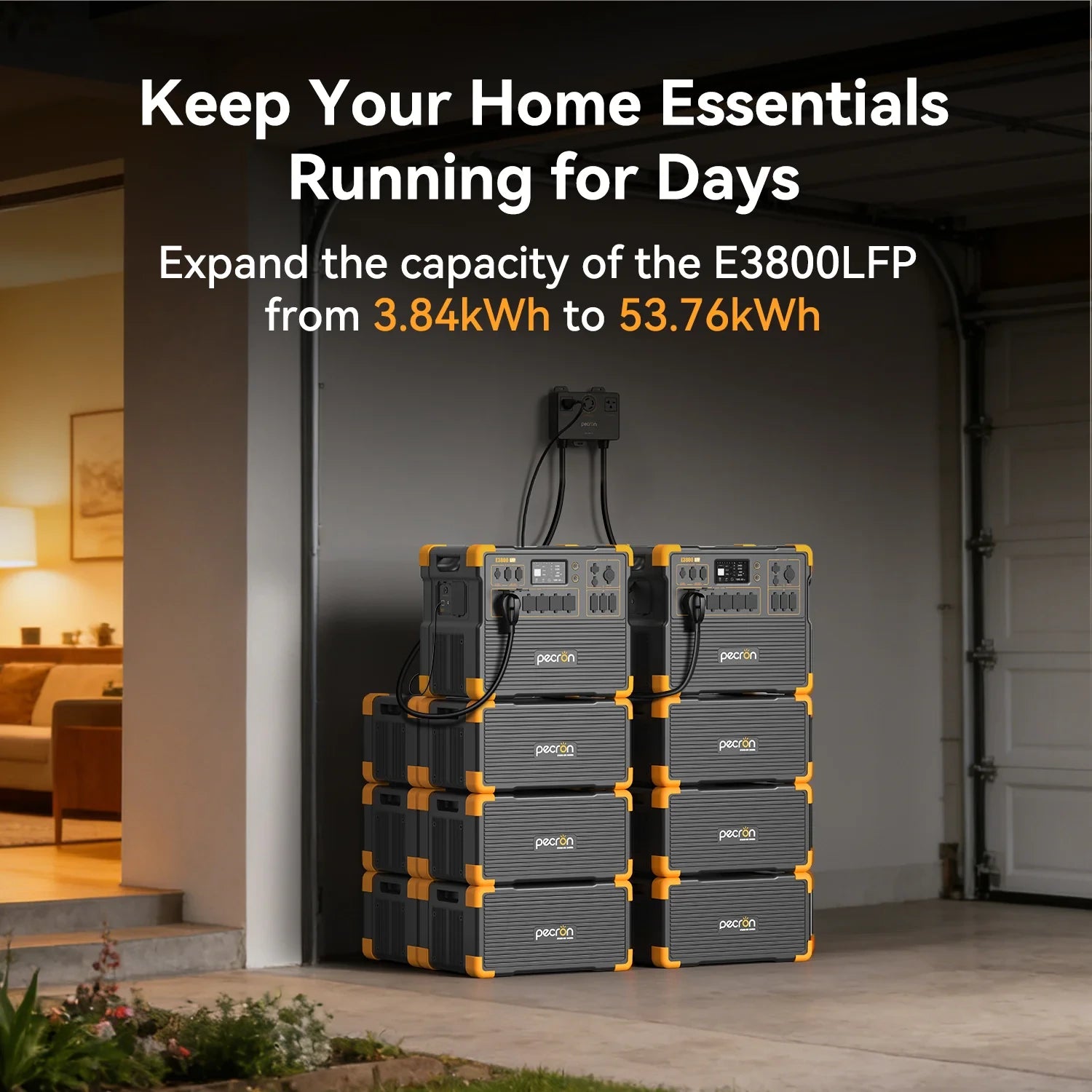

  • E3800LFP: Maximum of 12 EP3800-48Vs when using 2xE3800LFP (53.76kWh total capacity).






PECRON EP3800-48V Expansion Battery 3840Wh backup home power up to 53.76kWh




Built Tough for Real-World Use

Whether you’re running your home backup system longer or keeping your off-grid setup powered for days, the PECRON EP3800-48V Expansion Battery delivers scalable, efficient energy storage. Use it alone for DC devices or connect it to your PECRON station for massive off-grid capability.



PECRON EP3800-48V Expansion Battery 3840Wh battery setup



Model PECRON EP3800-48V Expansion Battery
Capacity 3840Wh
Battery Type LiFePO4
Weight 66.8lbs (30.3kg)
Dimension 17.3x12.2x8.8 in (441x312x223 mm)
Compatible Power Stations MJ32 connector: E1000LFP, E1500LFP, E2400LFP, F3000LFP, E3600LFP, & E3800LFP(NOT with E2000LFP)
Charge Temperature 32°F-113°F (0°C~45°C)
Discharge Temperature 32°F-113°F (0°C~45°C)
User Manual EP3800-48V User Manual
