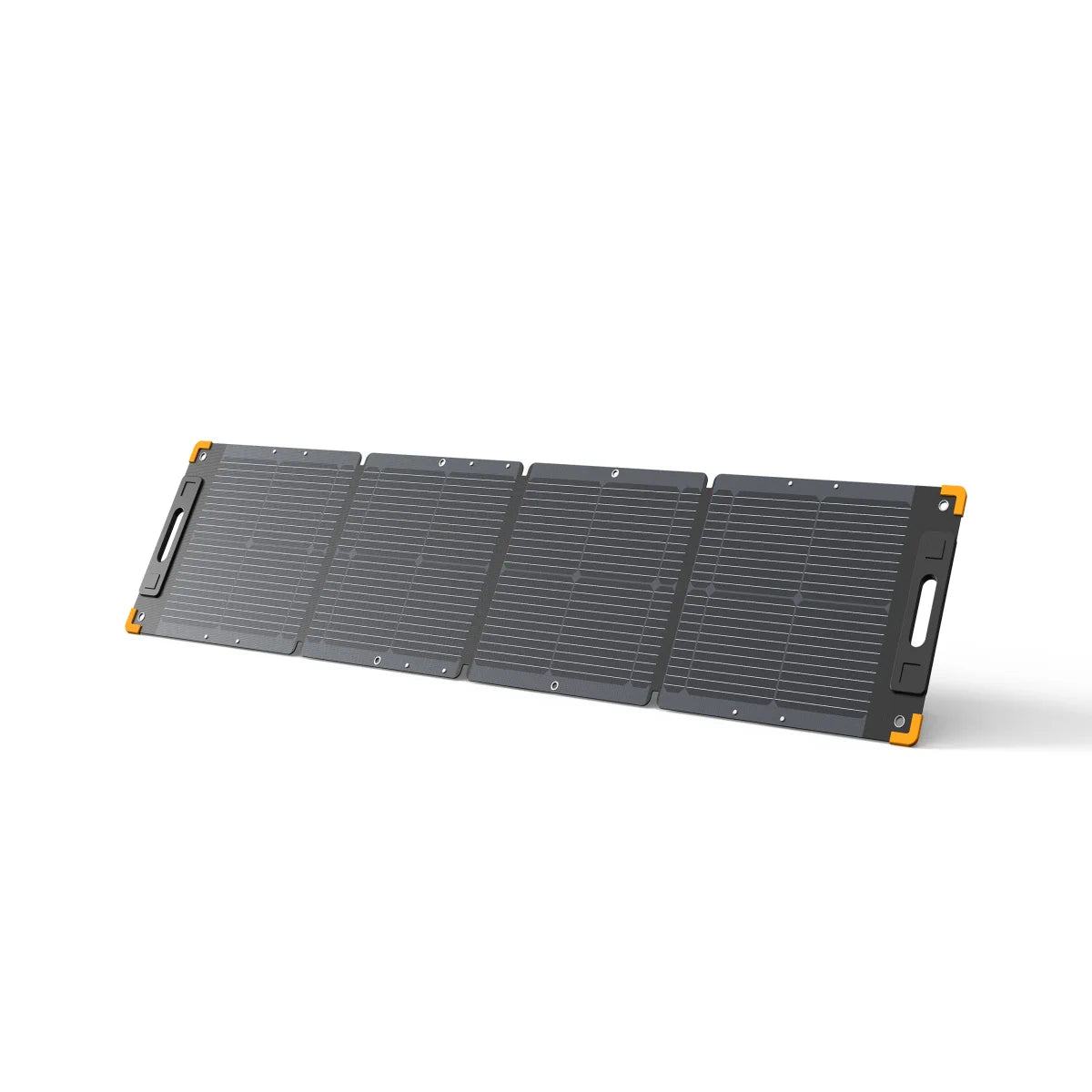

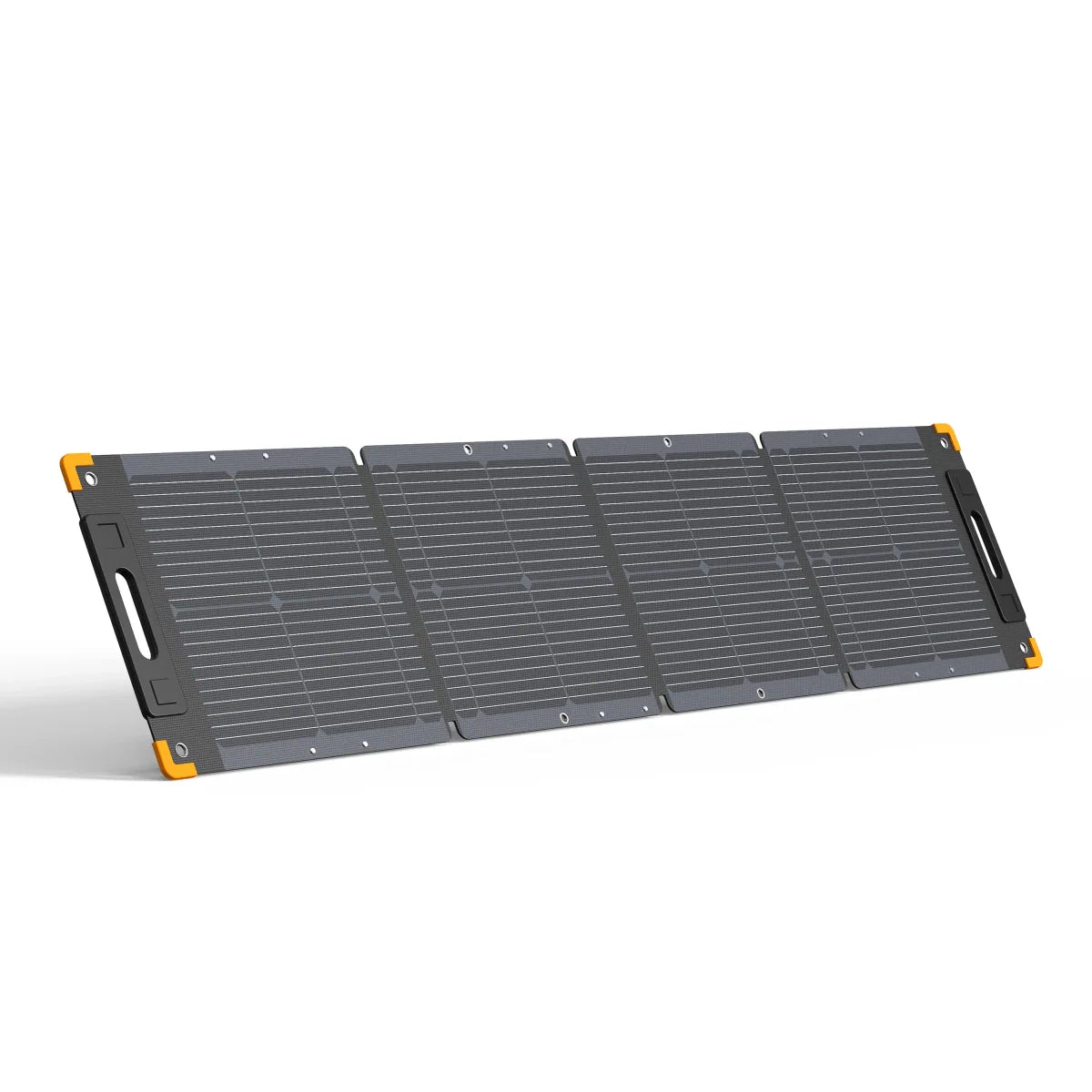

The PECRON PV100 100W Portable Solar Panel is a compact, foldable monocrystalline panel designed to keep your power station charged wherever you go. With a peak power of 105W and cell efficiency up to 23.5%, it turns sunlight into reliable, clean energy for camping, van life, RVs, and home backup setups.
The Power Sphere is an authorized PECRON distributor. Your purchase includes PECRON’s official warranty and service, plus our hands-on support for setup.
Output Specifications
Rated at Vmp ≈ 19.4V and Imp ≈ 5.4A, the PV100 is ideal for 12V-based charging systems and power stations that accept at least 30V solar inputs. The included output connector is DC5521, which can also work with various adapters to connect to MC4, DD5525, and XT60 inputs (adapters sold separately).
Rugged, Weather-Ready design
With an IP67 ingress waterproof rating, the PECRON PV100 is built to handle rain, dust, and outdoor use. It operates from -20°C to +60°C, making it a solid option for year-round travel and off-grid use.

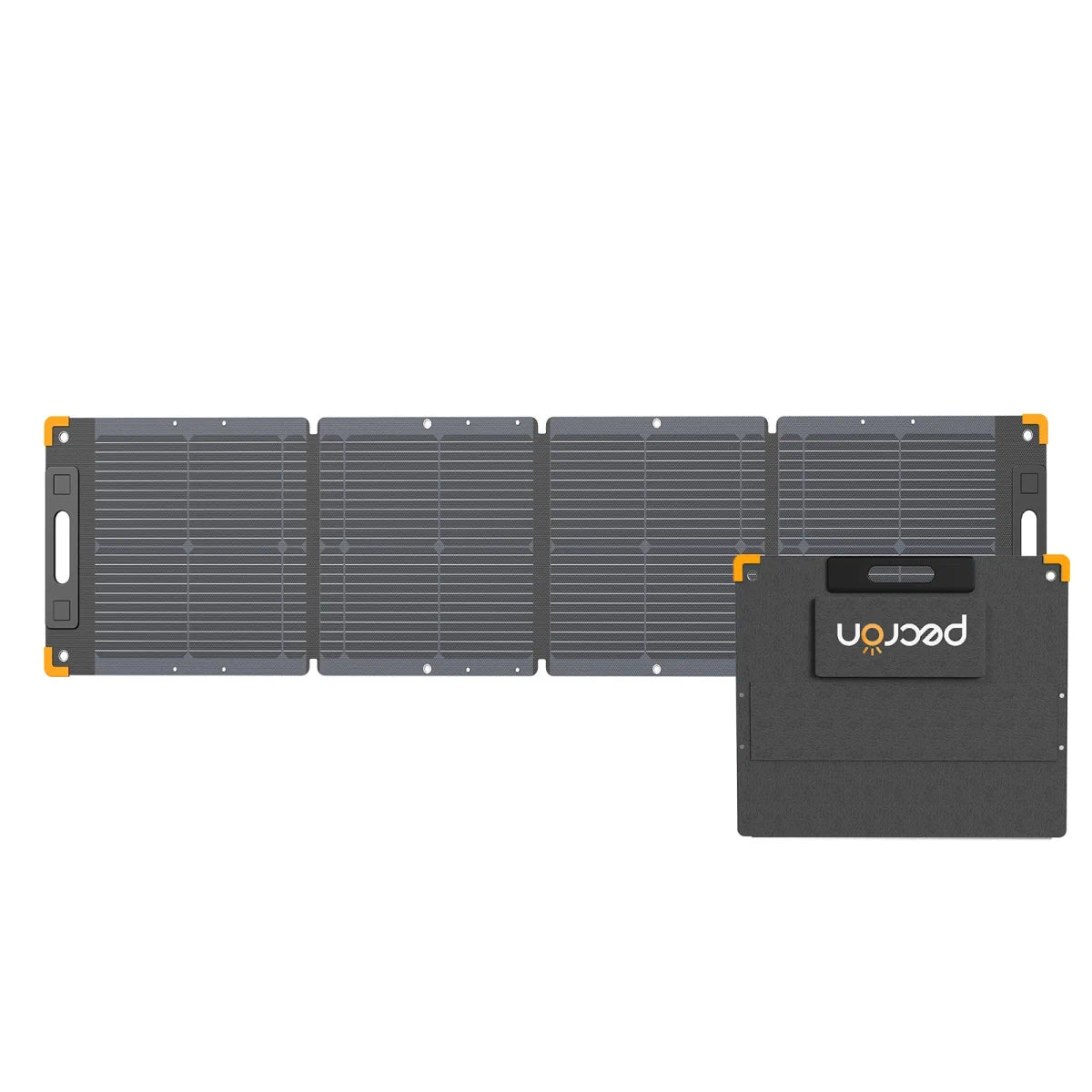

Folded, it measures roughly 18.7x16.8x1.7 in (475x426x42 mm), and unfolded it stretches to 68.5x16.8x1.1 in (1740x426x27 mm), giving you a generous collection area that still packs down small for storage.
Series vs. Parallel: Connecting Multiple PV100s
Two PV100 Solar Panels in series are best for higher-voltage PV inputs. It reaches approximately Voc ≈ 49V and Isc ≈ 5.8A.
Use series when your power station has a higher PV voltage range (for example, something like 80V or higher) and a lower current limit. This lets the controller operate more efficiently at higher voltage and lower current.
Two PV100 Solar Panels in parallel are best for low-voltage PV inputs), with an approximate maximum output of Voc ≈ 24.5V and Isc ≈ 11.6A.
Use parallel when your power station accepts lower PV voltage (around a single panel’s Voc) but allows higher input current.
Important: Always check your power station’s PV input voltage and current limits (Voc and max amps) before wiring panels in series or parallel. Keep the total Voc below the controller’s maximum, and do not exceed the rated input current. Colder temperatures will cause voltage to increase as well.
The Pecron PV100 is a great match for Pecron’s LFP power station lineup (sold separately) and any solar generator that supports at least 30V input with DC5521 connector.

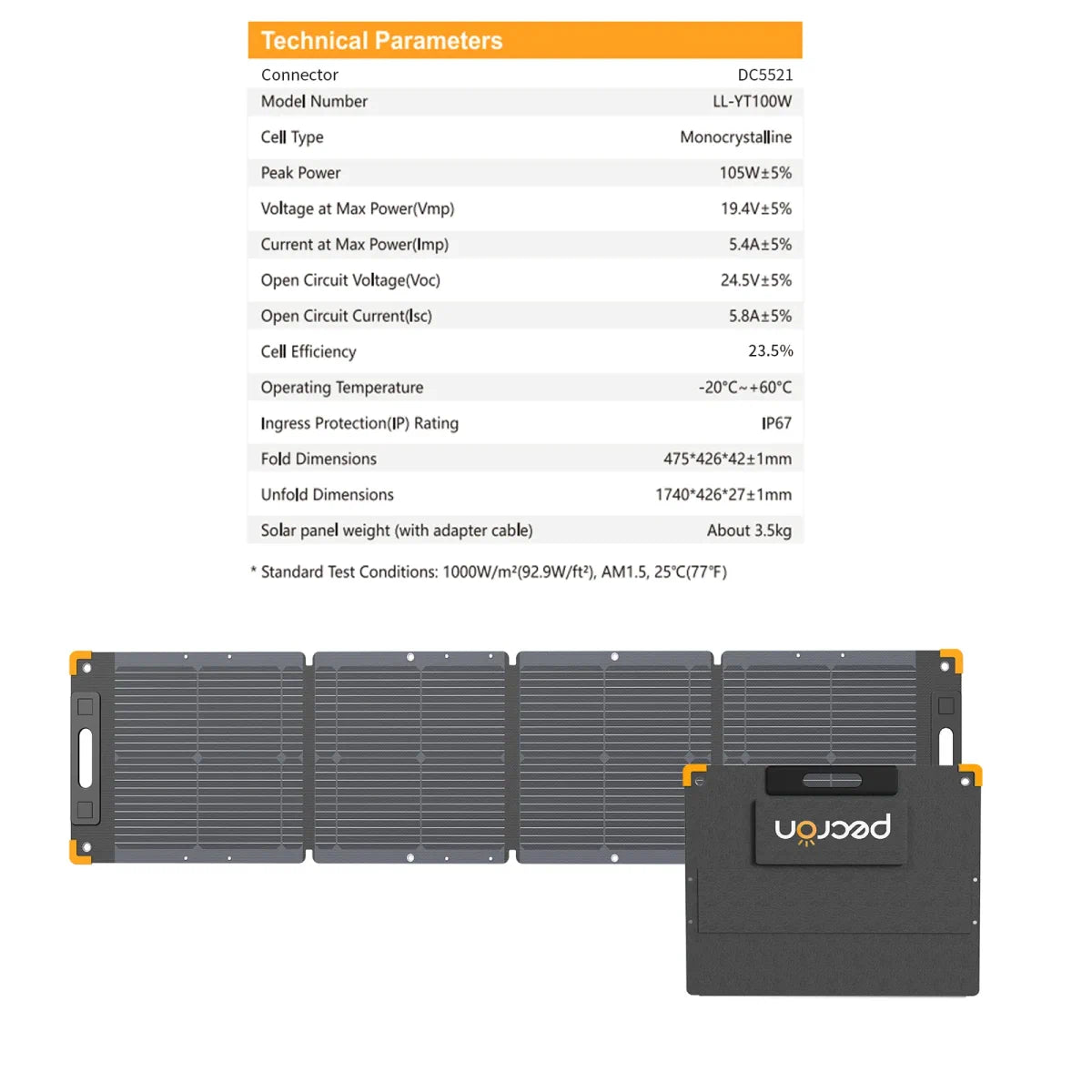

| Model | PECRON PV100 100W Portable Solar Panel |
| Cell Type | Monocrystalline |
| Output Connector | DC5521 |
| Peak Power | 105W ±5% |
| Voltage at Max Power (Vmp) | 19.4V ±5% |
| Current at Max Power (lmp) | 5.4A ±5% |
| Open Circuit Voltage (Voc) | 24.5V ±5% |
| Open Circuit Current (lsc) | 5.8A ±5% |
| Cell Efficiency | 23.5% |
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
| Waterproof Rating | IP67 |
| Folded Dimensions | 18.7x16.8x1.7 in (475x426x42 mm) |
| Unfolded Dimensions | 68.5x16.8x1.1 in (1740x426x27 mm) |
| Solar Panel Weight (With Adapter Cable) | 7.7 lbs (3.5 kg) |
| Standard Test Conditions | 1000w/m2(92.9W/ft2), AM1.5, 25”C(77°F) |
