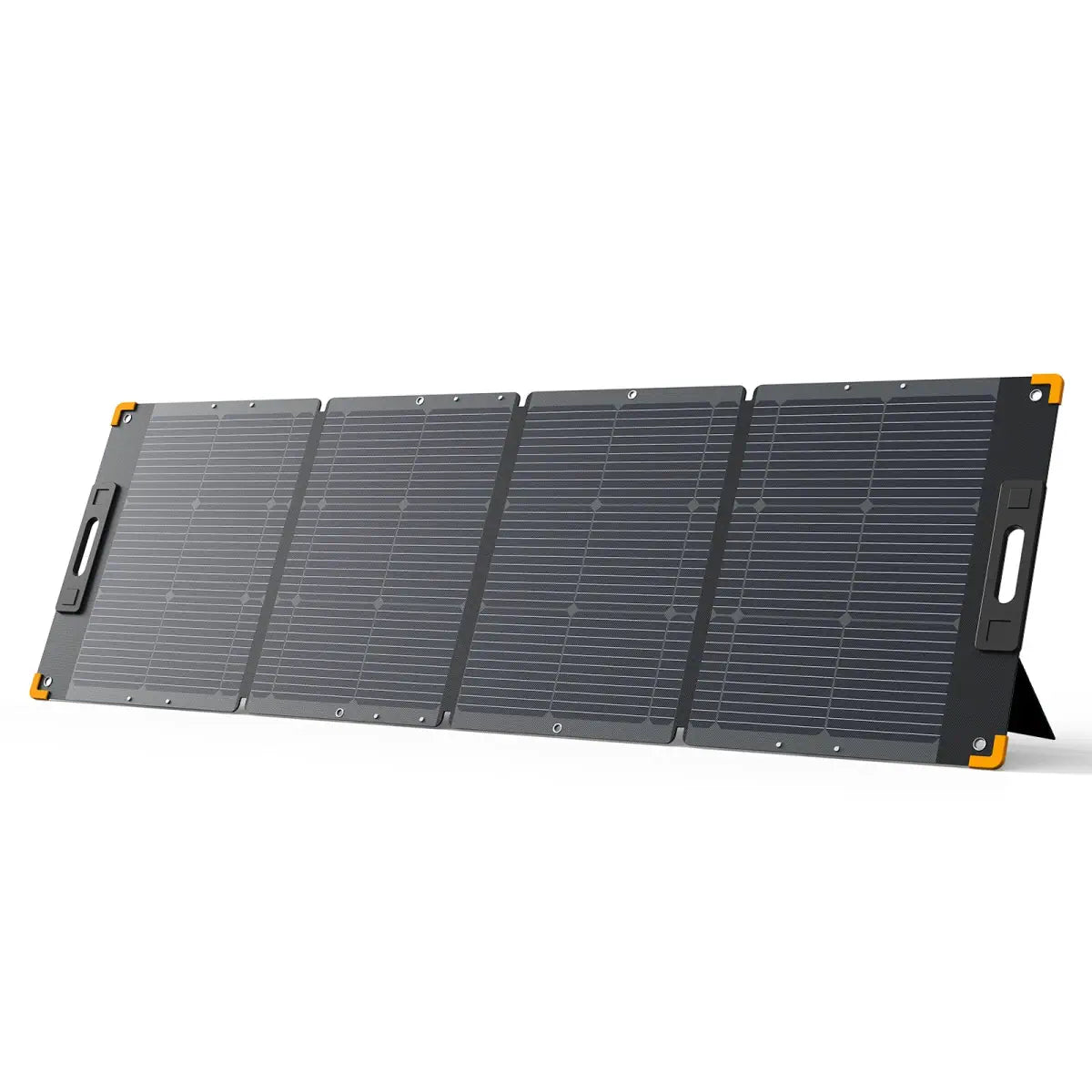

The PECRON PV300 300W Portable Solar Panel is built for people who want a serious jump in solar charging power without giving up portability. With a maximum power rating of 300W, a Vmp around 34.5V, and a working current of about 8.69A, it’s an excellent match for mid- and large-sized power stations that accept higher-voltage MC4 input.
The Power Sphere is an authorized PECRON distributor. Your purchase includes PECRON’s official warranty and service, plus our hands-on support.
Estimated Power Generation
In strong, direct sunlight with good panel placement, this 300W panel can often deliver roughly 900Wh (0.9kWh) of energy over about 4 hours of solid sun. Real-world performance will always depend on weather, temperature, shading, and angle to the sun. But this gives a realistic idea of how much it can contribute to charging a battery or running DC loads during the day.
Built for the Outdoors
The PV300 uses high-efficiency monocrystalline cells (up to 23.5%), helping you make the most of limited sun hours. With an IP67 ingress protection rating, it’s engineered to handle dust, splashes, and rain. The operating temperature range of -4°F to +140°F means it’s ready for cold mornings and hot desert afternoons alike.
Folded, the panel measures about 24.7x31.3x1.7 in (627x794x42 mm), and unfolded it reaches 92x31.3x1.1 in (2338x794x27 mm), giving plenty of surface area to capture sunlight while still packing down flat for storage. At roughly 19.8 lbs (8.97 kg), it’s easy to move from vehicle to campsite or between setups.

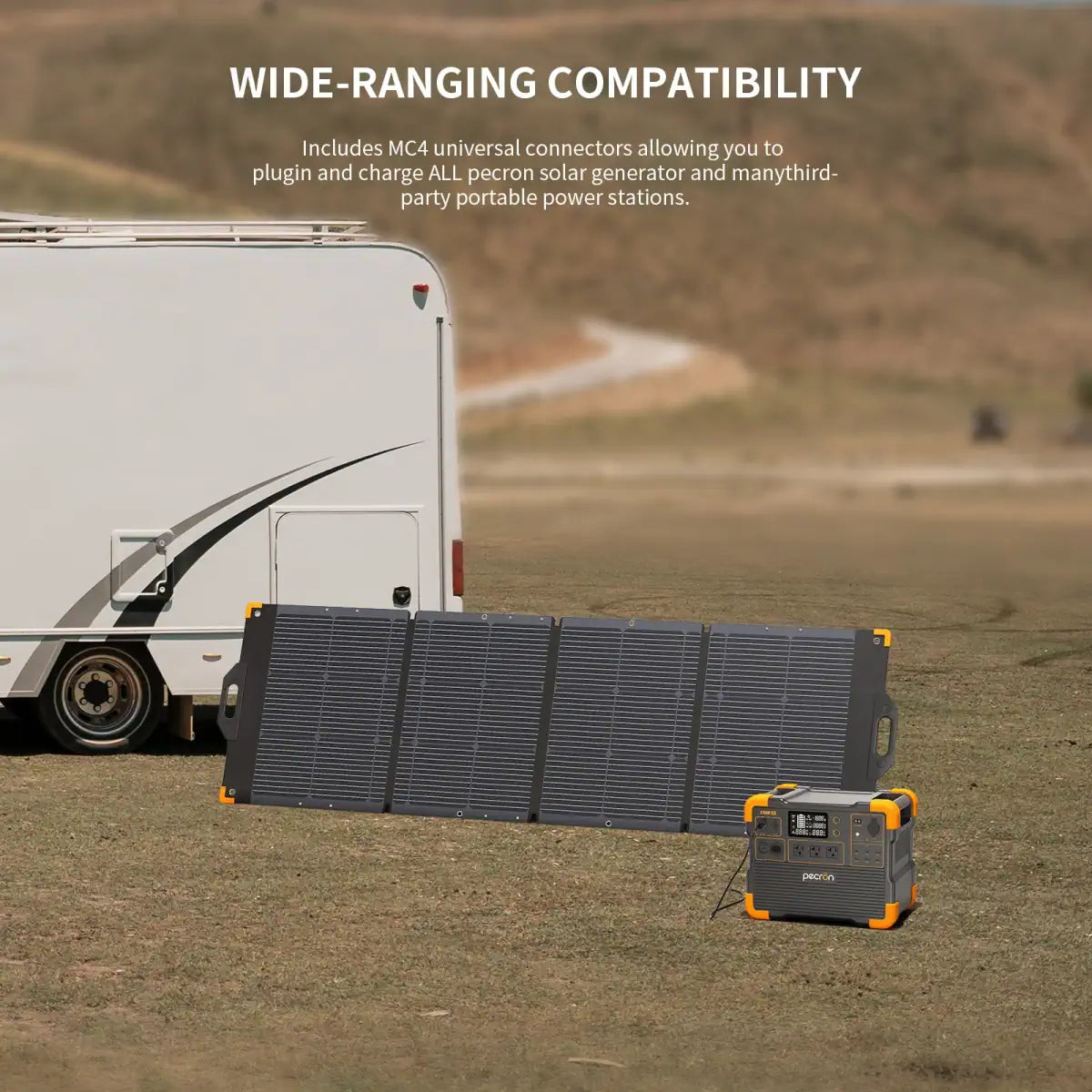

MC4 Connectors for Ultimate Compatibility
The PV300 comes with MC4 connectors, making it simple to connect to Pecron power stations (sold separately) and many other solar generators that support MC4 input within the panel’s voltage range. Just plug into your compatible power station’s solar input and you have quiet, emission-free charging wherever you can find sun.

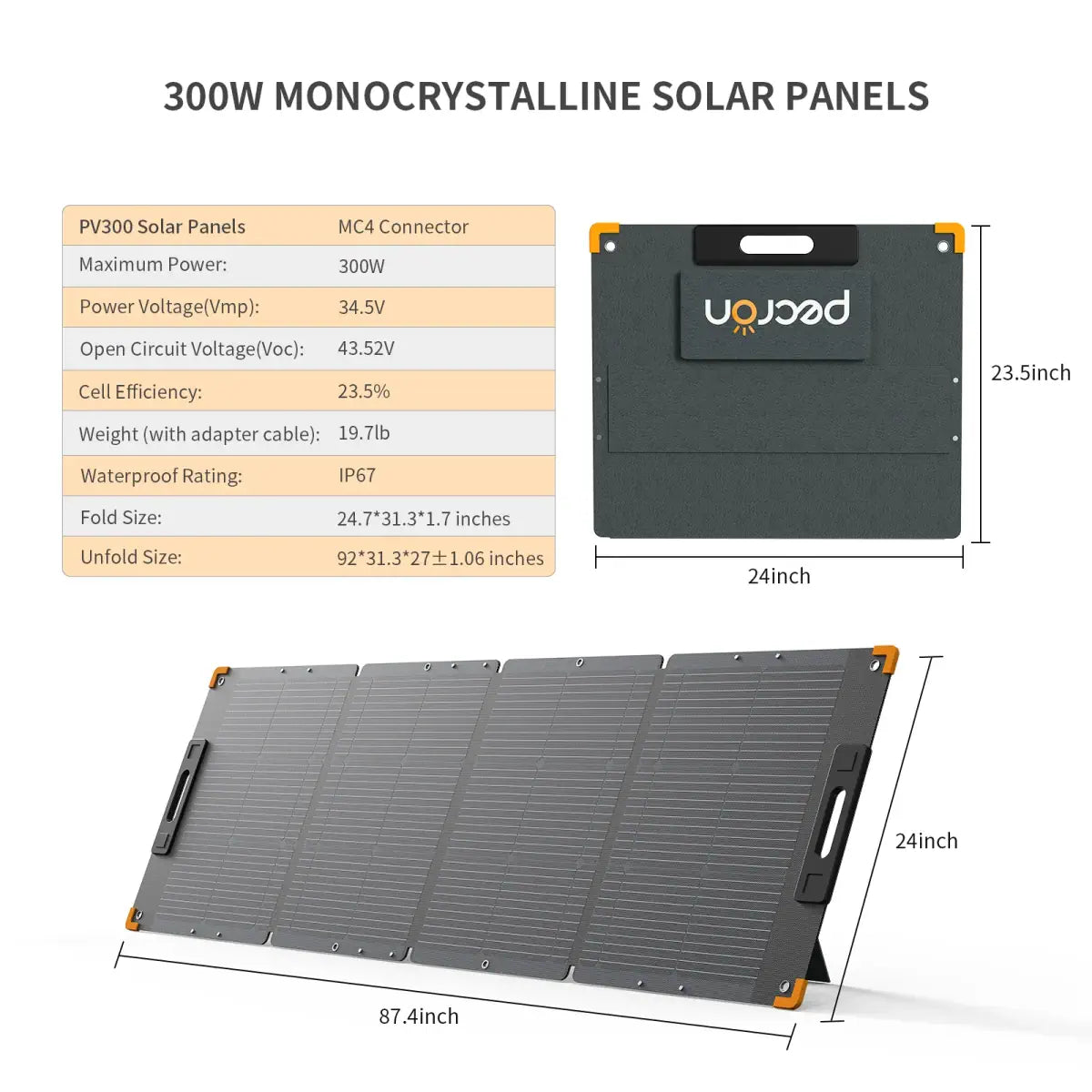

| Model | PECRON PV300 300W Portable Solar Panel |
| Cell Type | Monocrystalline |
| Output Connector | MC4 |
| Nominal Power | 300W ±5% |
| Cell Efficiency | 23.5% |
| Voltage at Max Power (Vmp) | 34.5V ±5% |
| Current at Max Power (lmp) | 8.69A ±5% |
| Open Circuit Voltage (Voc) | 43.52V ±5% |
| Open Circuit Current (lsc) | 9.56A ±5% |
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
| Waterproof Rating | IP67 |
| Folded Dimensions | 24.7x31.3x1.7 in (627x794x42 mm) |
| Unfolded Dimensions | 92x31.3x1.1 in (2338x794x27 mm) |
| Solar Panel Weight (With Adapter Cable) | 19.8 lbs (8.97 kg) |
